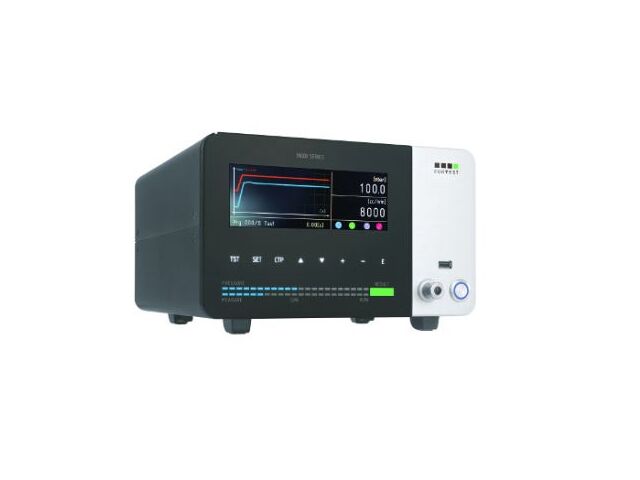

The T8730 was created with the precise task of measuring flow rates on parts such as filters (medical, diesel or petrol), pipes, orifices, valves, etc...
In addition to the classic flow measurement, the instrument has other modes that make it the most versatile in its category: up or down ramps, opening tests and burst tests.
A separate chapter, however, for the 'continuous measurement' function, i.e. a test with infinite time that allows the adjustment of taps or repair of parts in real-time.
The instrument also features an intelligent pressure regulation mode, which, via the automatic pressure regulator, continuously adjusts the test pressure according to the change in pressure drop, making the reading much more stable and repetitive.The equipment of the new T8730 includes slave USB ports, RS232, RS485, Profinet, EtherNet IP and EtherCAT. An Ethernet port and a 26-pin connector with 4 inputs and 8 fully programmable outputs for interfacing to external valves, safety barriers, switches, etc. can be optionally mounted.
A master USB port is mounted on the front panel for connection of a USB stick that allows storage of performed tests, backup/restore of parameters and updating of instrument firmware.
Connection to thermal printers, bar-code/data-matrix readers and markers is automatic via internal menu.
All you need to run your factory !
