Large capacity leak test chamber CTE-GM/CTEX-GM

Leak testing

Vote

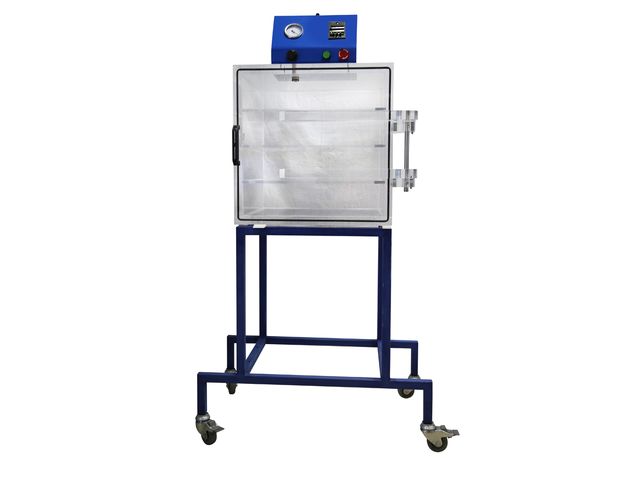

“ Compact, pneumatic, high capacity Simple and fast testing for large series Available on a cart for better mobility Arrangement with shelf for a large series of samples ”

Ask for a quote

Presentation

The CTE-GM is made of highly transparent thermoplastic polymer and allows to test, by vacuum, the tightness of packaging containing liquid or semi-viscous products in large series such as vials or bottles directly at the edge of the production line. It is composed of a fully pneumatic and enclosed system which, fed by compressed air, creates a pressure difference between the inside and the outside of your sample.

For dry testing, simply lay your sample down so that the cap is submerged from the inside. We will observe a flow of fluid on a blotting paper in case of leak. The handling is very simple and the result is fast and visible to the naked eye.

Its electronic version CTEX-GM, allows to pre-programme parameters (depression, time) for specific tests.

Additional features of the pneumatic CTE-GM
- Traceability by a time-stamped ticket containing the customer's name, batch number, program number (8) and/or data export software to Dataxport computer
- Pump option up to 920 mbar
- Time delay up to 4 000 seconds per program

Technical features

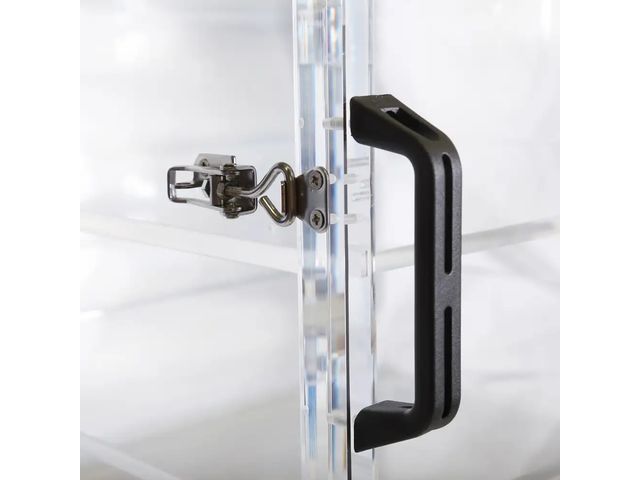

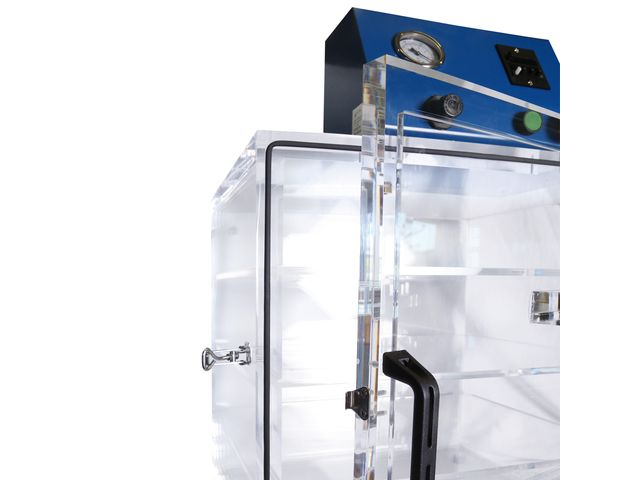

Door opening to facilitate ergonomics/operator safety Shelves (3 max) Dimensions : Length 500 * Depth 450 * Height 500 mm Connection to compressed air with a pressure relief of 6 bars by means of an 8 mm diameter rilsan connection. Time adjustable up to 999 seconds Maximum pressure of - 850 mbar readable on a manovacuometer with needle Vacuum adjustment knob Standards: ASTM D4991, ASTM D5094, ASTM D4169, EN 14401, DIN55528 (Part 1, 2, 3, 4, 5) Applications for bottles, for packaging Vacuum type, pneumatic
