CTE Vacuum Leak Tester

Leak testing

Vote

“ Pneumatic ”

Ask for a quote

Presentation

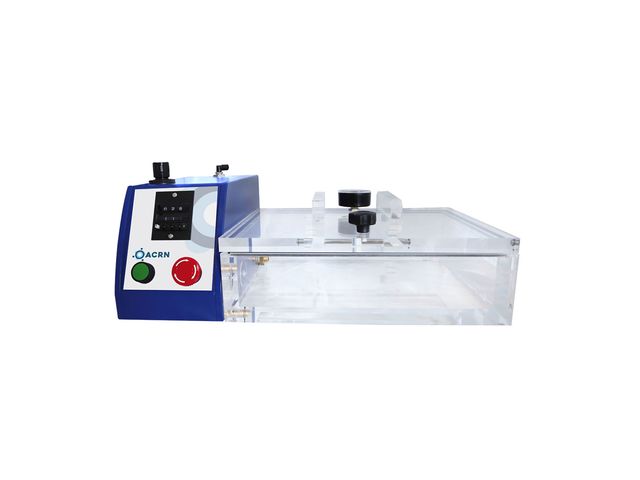

The CTE is a vacuum chamber that allows you to vacuum test the tightness of packaging containing liquid or semi-viscous products such as vials or bottles directly at the edge of the production line with total visibility, thanks to its Plexiglas design. It is composed of a fully pneumatic and enclosed system which, powered by compressed air, creates a pressure difference between the inside and outside of your sample. ACRN has standard door or lid housings but can also make customised housings to suit the customer's needs.

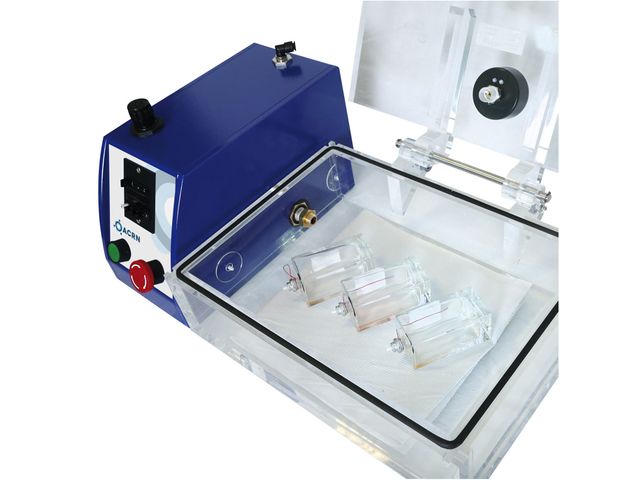

For dry testing, simply lay your sample down so that the cap is submerged from the inside. We will observe a flow of fluid on a blotting paper during this test in case of a leak. The handling is very simple and the result is quick and visible to the naked eye!

Technical features

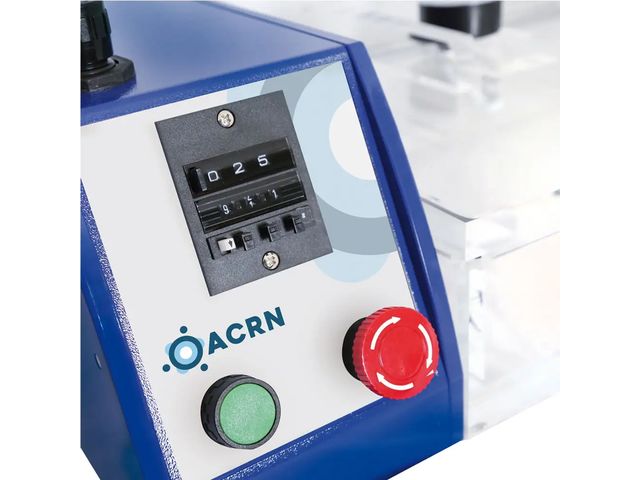

Connection to 6 bar pressure-relieved compressed air via 8 mm diameter rislan coupling Time adjustable up to 999 seconds with optional 99,999 second digit. Maximum vacuum of - 850 mbar readable on a manovacuometer Vacuum adjustment knob Different standard sizes in door or cover opening (see price list and options) Standards: ASTM D4991, ASTM D5094, ASTM D4169, EN 14401, DIN55528 (Part 1, 2, 3, 4, 5)

Download the complete technical features
