Système d'Injection Séquentielle type GC'TIMER

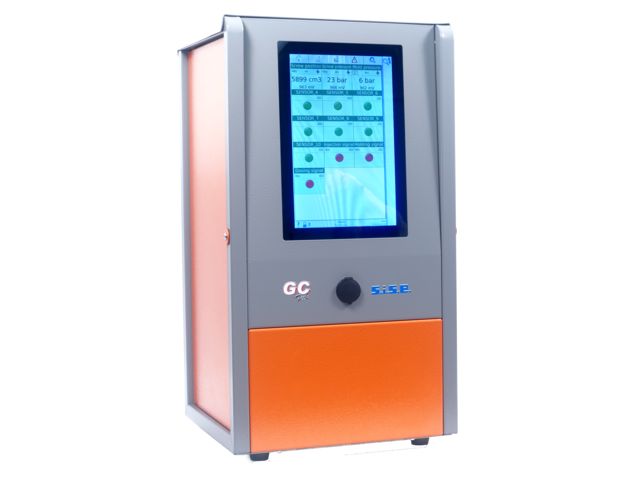

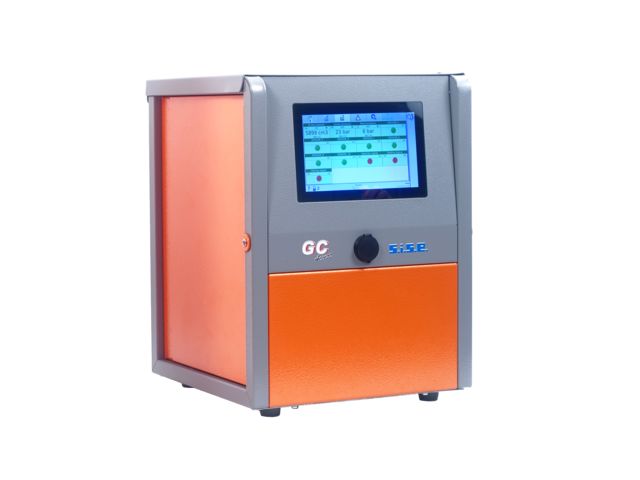

Valve Gate Controller Type GC'TIMER

“ Compact, intuitive and economical ”

Ask for a quote

This system controls up to 12 channels in single-acting mode and up to 2 openings/closures per channel per cycle.

It boasts a more user-friendly and intuitive touch screen. It has unlimited storage for programming files and cycle counting.

The multilingual system's redesigned development allows for acquisition speeds and reaction times in the order of milliseconds.

You can program the control of hydraulic or pneumatic shut-off nozzles by combining the available signals, such as the top injection and top hold signals. This control box allows you to test the opening and closing of the shut-off valves in manual mode to check their electrical wiring and operating condition.

Technical features

Number of valves: 12 Number of openings / closings per cycle: 2 Number of mold files: unlimited Multilingual: 12 languages Control via injection and hold signal: Yes Control via screw position (%, mm, cm3): No Control via dosing signal: No Injection Pressure: No Switchover control: No Data acquistion in real-time: Yes

Download the complete technical features
