High-end measuring and analysis system for partial discharges | MPD 600 OMICRON

High-end measuring and analysis system for partial discharges | MPD 600

Tester

Vote

Contact the supplier Receive Documentation Ask for a quote

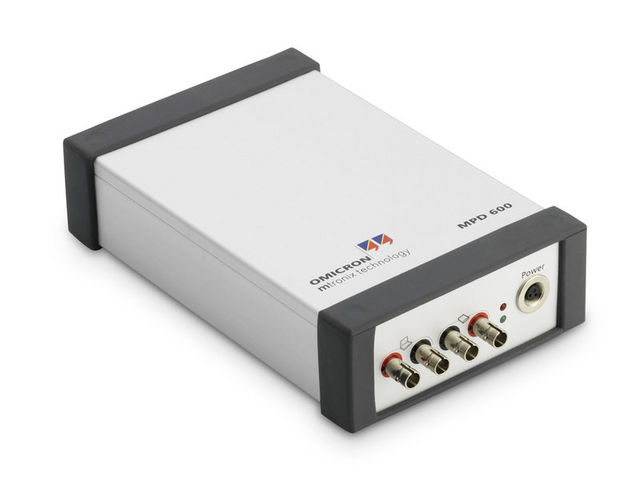

The MPD 600 is a highly developed device for measuring partial discharges (PD). With excellent tools, even the smallest PD pulses are separated from interference and analyzed. The MPD 600 is suitable for many different PD measurement applications.

With many complex test objects, e.g. generators, multiple simultaneous measurements offer a distinct advantage. An MPD can be effortlessly combined with other MPDs. It is the only system worldwide that records and analyzes the signals of all connected measurement points at the same time.

Hundreds of MPD systems are currently in use across the globe. Cable, transformer and machine manufacturers use the MPD 600 in their production facilities and for on-site testing.

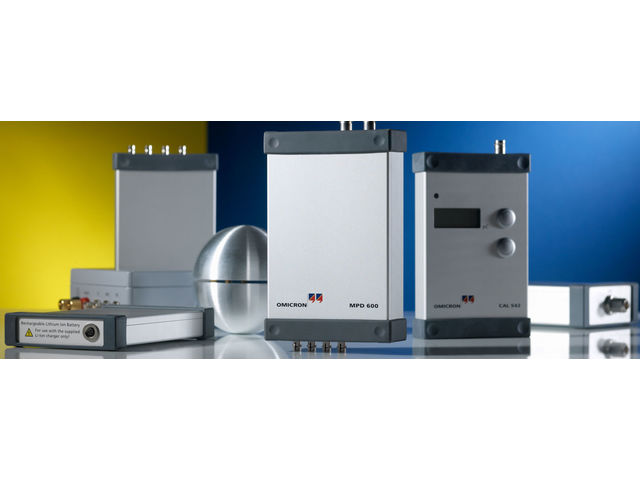

The MPD 600 system consists of a measurement unit, a USB controller and sophisticated analysis software. The modular plug-and-play system enables a number of stateof- the-art display and assessment features and achieves outstandingly high measurement accuracy.

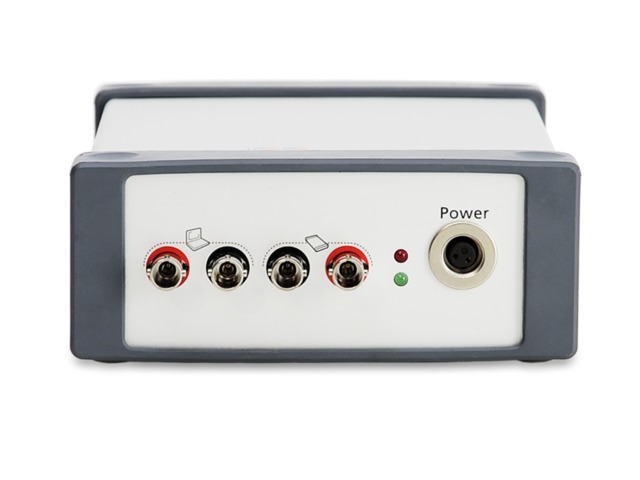

The system can be easily expanded to a virtually unlimited number of channels. This enables parallel and truly synchronous measurements. Fiber optic connections allow distances of up to 2 km / 1.2 miles between adjacent measuring devices.

Hundreds of units are operating worldwide in industrial and utility applications. MPD 600 reliability is being proven regularly by major cable, transformer and rotating machine manufactures in some of the world’s largest PD measuring projects.



Center frequency : 0 Hz ... 32 MHz Time domain : 100 ns ... 8 μs Min. hardware : Pentium 4® / Athlon 64® or better, 1 GB RAM, USB 2.0 Software : Windows 7™, Windows 8™, Windows 8.1™, Windows 10™ PD event time resolution : < 2 ns System noise : < 0.015 pC Spectrum analyzer noise : < -120 dB Max. double pulse resolution : < 200 ns (time domain integration, superposition error < 1 %) Humidity : 5 % ... 95 %, non-condensing Ambient temperature : Operation: 0 °C ... 55 °C / 32 °F ... 89 °F
Download the complete technical features

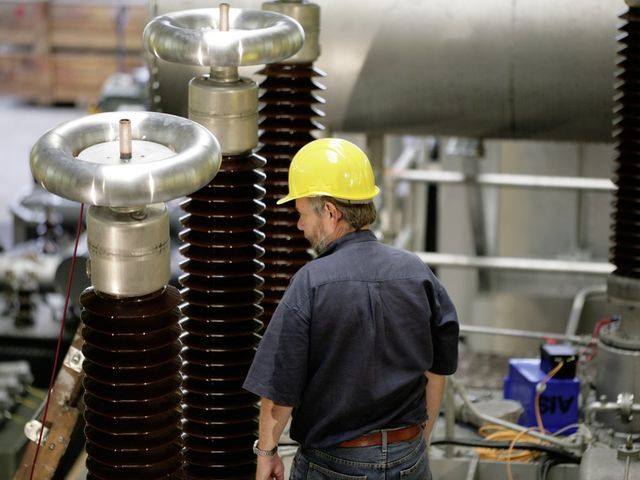

Transformer testing On-site testing and fault localization in cables Gas-insulated switchgear (GIS) with extension (also in the UHF range) Measurements on rotating machines Lab measurements on medium and high-voltage components
