Hydraulic Controllers - HS Series

Special pneumatic cylinder

Vote

“ ✔ Ensures constant speed of pneumatic cylinders ”

Ask for a quote

Presentation

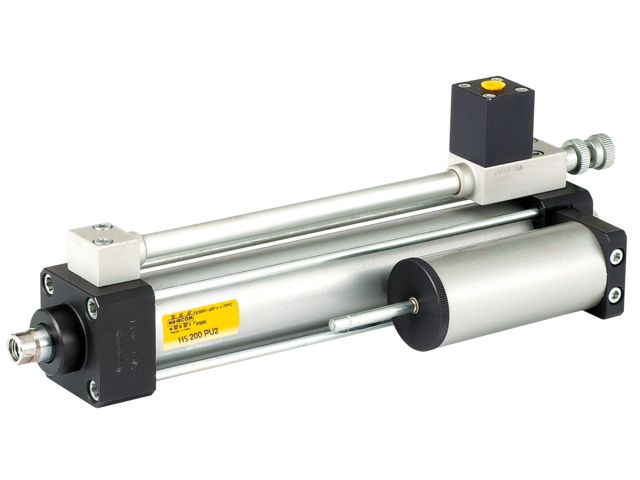

SENGA's HS series of hydraulic regulators are designed to guarantee a constant speed of the pneumatic cylinders during the work cycle.

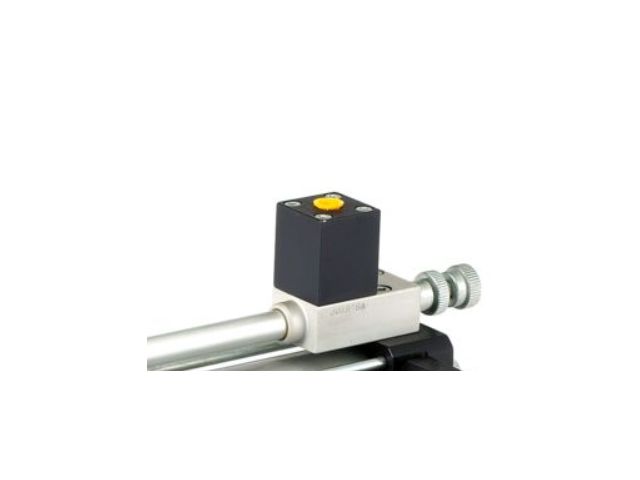

The incompressibility of the oil passing from one chamber to another through an externally adjustable flow regulator allows for uniform speed, ensuring perfectly repeatable stops regardless of the load applied, vibrations or impacts.

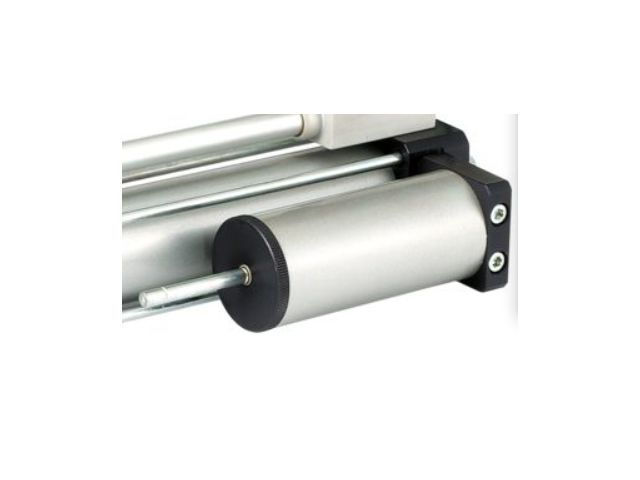

The hydraulic regulators are available in a 40 mm diameter bore and consist of a drawn steel tube, anodised aluminium alloy heads, a chrome-plated C45 steel rod, steel tie rods, an anodised aluminium oil level rod, anodised aluminium alloy pistons, an NBR piston seal, a polyurethane rod seal and fixing accessories.

https://www.senga.fr/en/products-e-shop

Technical features

Fluid: hydraulic oil Versions: parallel: input, output or dual control Maximum controllable load: 6000 N Standard strokes: 50,100,150,200,250,300,350, 400,450,500 Maximum stroke: 1000 mm Min./Max. speed Without throttle valve: 60 to 10000 (mm/min) - With throttle valve: 0 to 6000 Working temperature: between 0°C and +70°C Material: steel, aluminium

Usage scope

Industry Industrial pneumatics Pneumatic cylinders Pneumatic automation Compressed air

Opinion on the product

Drop your rating on Hydraulic Controllers - HS Series

Your answer to the rating from -

INTERNET USERS ALSO CONSULTED ON THE CATEGORY SPECIAL PNEUMATIC CYLINDER

Pneumatic cylinders SOBRAIR to increase the mechanical strength

Ask for a quote

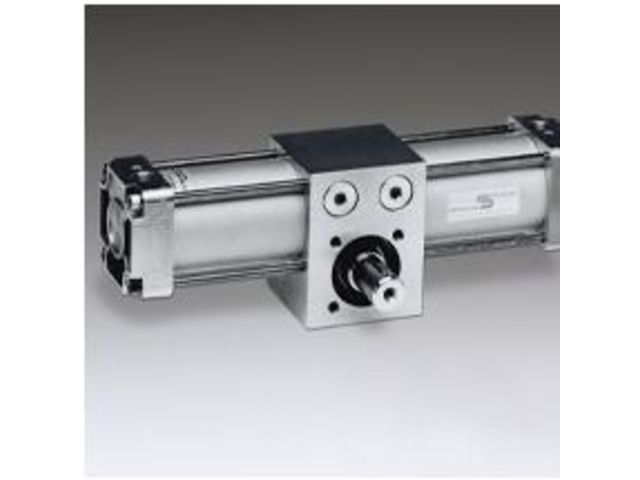

Hydraulic rotative cylinders DSO * - 10 bar
