IMPAC Pyrometer IS 12-Al and IS 12-Al/S

Pyrometers

Vote

Ask for a quote

Presentation

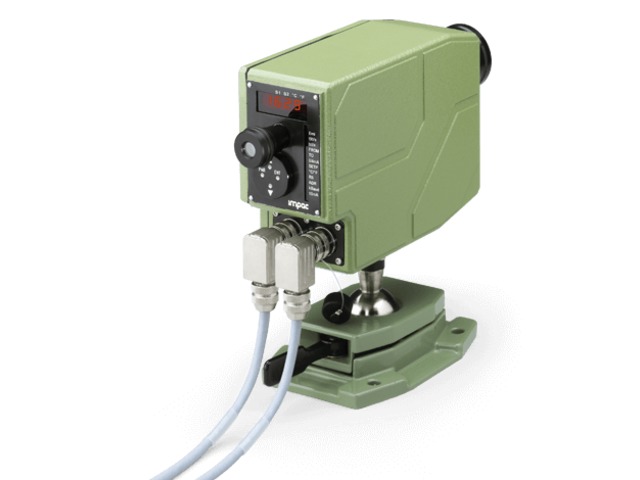

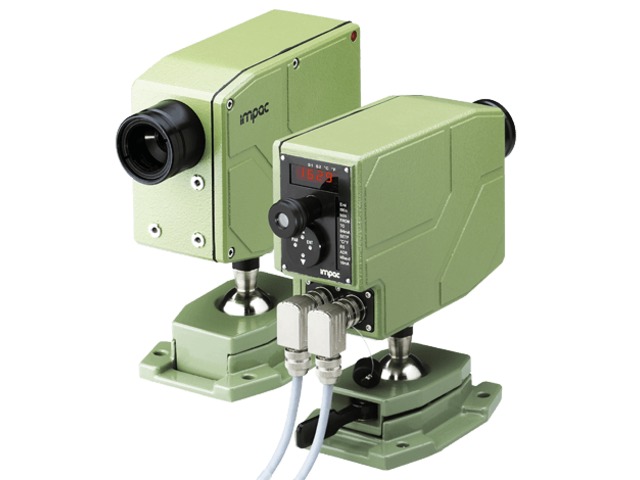

Digital pyrometer for non-contact temperature measurement of aluminum between 350 and 1050°C. Type -S with built-in scanner.

The IS 12-Al is a development of the pyrometer IS 12, specially designed for the measurement of aluminum. The robust die-cast housing with protection class IP65 is designed for the use in industrial environments.

The parameters of this digital instrument can be set directly via push buttons on the rear side of the instrument. The built-in digital display indicates the corresponding parameters or the actual temperature reading in measuring mode.

The instrument’s parameters can also be adjusted via digital interface with the optional available portable parameterizing device HT 6000 or in combination with the PC software InfraWin.

The software additionally allows the display and recording of temperature values graphically and numerically.

The IS 12-Al can be aligned exactly on the measuring object with the optimized thru-lens view finder with spot indication. For exact alignment of the measuring object the instruments are additionally equipped with a targeting light.

Technical features

Pyrometer specially designed for measurements of aluminum 2 wide temperature ranges between 350 and 1050 °C Spectral range: narrow band in the near infrared Short response time < 8 ms Small spot sizes Analog output 0 to 20 mA or 4 to 20 mA Digital interface RS232 or RS485 Integrated maximum value storage Built-in digital display

Download the complete technical features
