Manual Spray Gun : Xcite™ Light Airmix® SAMES KREMLIN

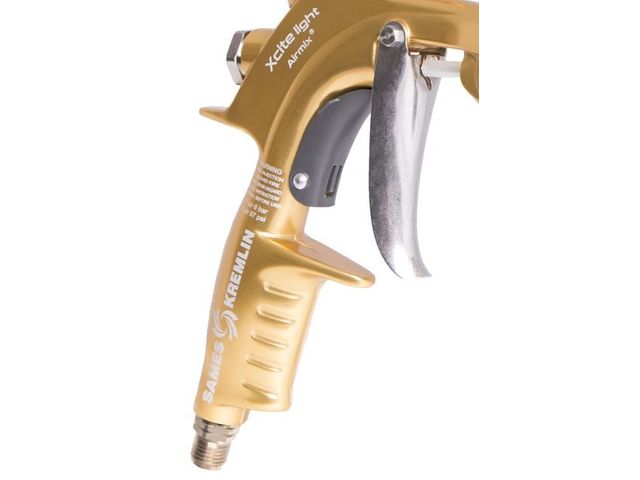

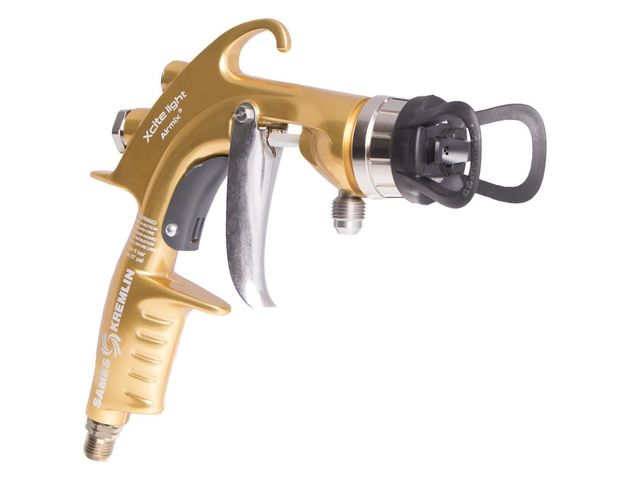

Manual Spray Gun : Xcite™ Light Airmix®

Spray guns

Vote

Ask for a quote Receive Documentation Contact the supplier

The Xcite™ Light Airmix® manual spray gun focuses on lightness, simplicity and maneuverability. For maximum benefits, this spray gun is available in two versions: 60 bar and 120 bar (870 psi & 1740 psi).

SAMES KREMLIN created Airmix® in 1975.  Airmix® is an intermediate spray technology that combines the finish quality of Airspray with the productivity of Airless and is the industrial standard for Air-Assisted Airless today.

The Xcite™ Light Airmix® manual spray gun benefits:

• Lightweight: 30% weight reduction without compromising the perfect gun balance
• Compact design for easy access to recessed areas and complex shaped parts
• Effortless trigger pull reduces muscle strain and carpal tunnel injuries
• Ready to spray concept: No fan adjustment - the fan width is pre-determined by the size of the tip installed on the gun.
Airmix® spraying technology is the best compromise between productivity and finish quality with the highest transfer efficiency - up to 86%.

The Xcite™ Light  pressure spray gun can be fed by either an Airmix® lub cup or a Flowmax® paint pump. We offer several complete ready-to-paint packages.


Performance
  •     High flow rates to meet demanding production needs
  •     High transfer efficiency - up to 86%
  •     Unsurpassed finish quality
  •     ​Lightweight and flexible design reduces operator fatigue

Productivity
  •     Constant finish quality with no fan adjustments
  •     Optimum spray quality with high transfer efficiency
  •     Compact design with optional whip hose connected directly to the spray gun for easy access into recessed areas

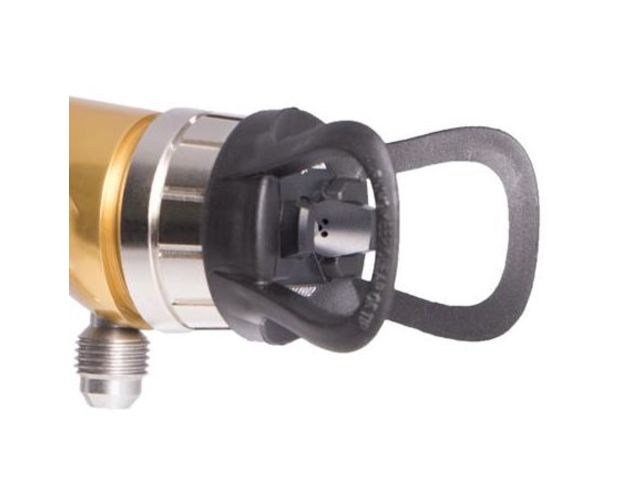

  •     Easy adjustment from horizontal to vertical spray pattern with EZ adjust function on the VX124 Airmix® aircap
  •     Trigger lock and aircap protection for operator safety

Sustainability
  •     Anodized body is excellent for wear resistance
  •     Double seal, fluid nozzle and tip to prevent paint from backing up into air passages
  •     Stainless steel fluid passages compatible with all materials
  •     The tips are made of the hardest carbide in the world to guarantee the longest life possible
  •     1PTFE seals, packing & stainless steel, carbide wetted parts for long life usage



Maximum Fluid Pressure : 60 - 120 (870 - 1740) bar (psi) Maximum Air Pressure : 6 (87) bar (psi) Recommended Air Pressure (min) : 0.7 - 3 (11.6 - 43) bar (psi) Air Consumption : 4.8 - 7.2 (2.8 - 4.2) m3/h (cfm) Transfer Efficiency : 86 % Maximum Fluid Temperature : 50 (122) °C (°F) Air Inlet : M 1/4 Fluid Inlet : 1/2 Weight : 385 (13.5) g (oz) Trigger effort : 9.8 - 13.7 (2.2 - 3.1) N (lbs)
Download the complete technical features
