Modular digital pyrometers | Impac Series 600

Pyrometers

Vote

“ - Installation in harsh industrial environments - Operation at ambient temperatures up to 80°C without cooling - Easy connection and replacement of sensor heads ”

Ask for a quote

Presentation

Modular digital infrared thermometers for non-contact temperature measurement.

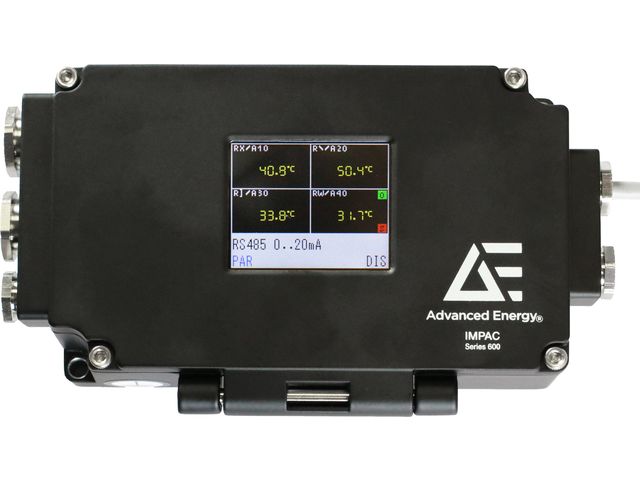

Advanced Energy's Impac 600 series is a modular digital pyrometer series that offers a customizable design with easy installation and maintenance.

The long-wavelength IN 600 model is best suited to non-contact temperature measurement on non-metallic or coated metallic objects.

The IS 600, IGA 600 and IGA 600/23 pyrometers are short-wave digital pyrometers for measurements on metals, ceramics or graphite.

The IN 600/5 is specially designed to measure the temperature of glass surfaces.

The IN 600 is a digital pyrometer with interchangeable sensor heads for non-contact temperature measurement of non-metallic or coated metallic surfaces.

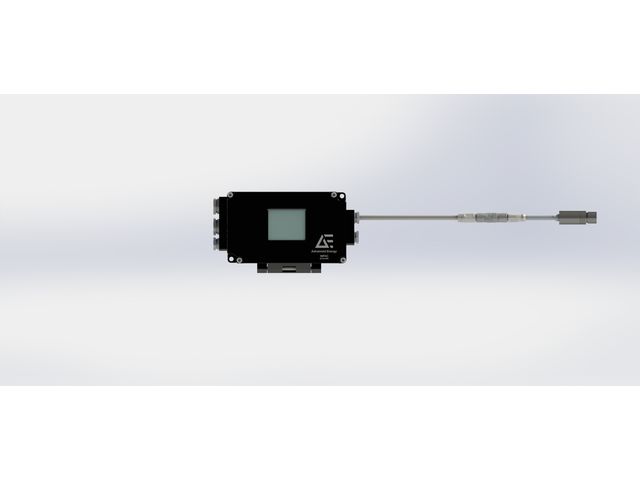

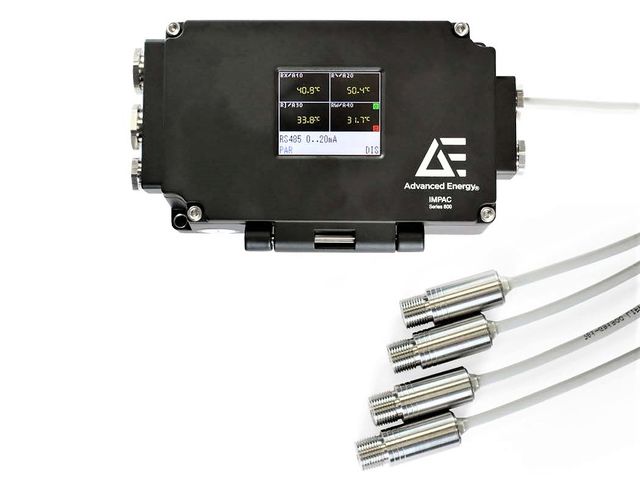

The modular concept makes it possible to combine the various system components. The standard configuration includes
an electronic converter, a sensor cable and a removable sensor head for easy replacement.

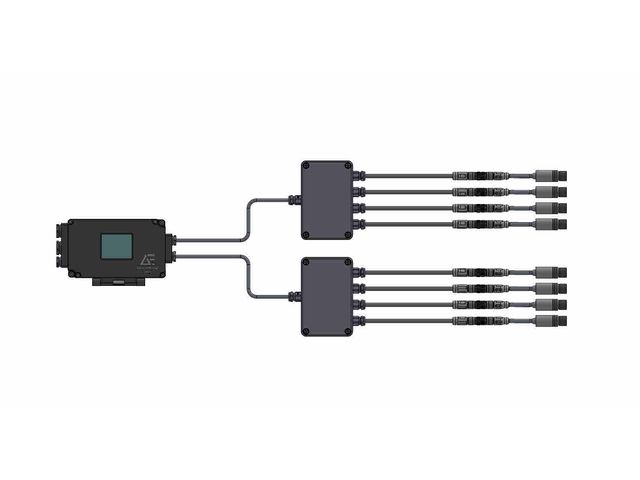

In addition, each converter box can connect up to two sensor heads, or up to two optional multi-sensor boxes with connections for up to two sensor heads. Two optional multi-sensor boxes with connections for up to four sensor heads each.

For maximum flexibility, the system allows you to combine the available sensor heads, even with different wavelengths.

Technical features

Digital and modular infrared thermometers For long wavelength non-contact temperature measurement Suitable for measuring temperature ranges from -40 to 700°C Three different optics available with fields of view of 2:1, 10:1 or 20:1 Highly flexible thanks to modular design up to 8 sensor heads for 8 measurement points with one converter box
