P123 | Portable dot peen marking gun

Turnkey Assembly System

“ Large marking window, Intensive use, Portable ”

Ask for a quote

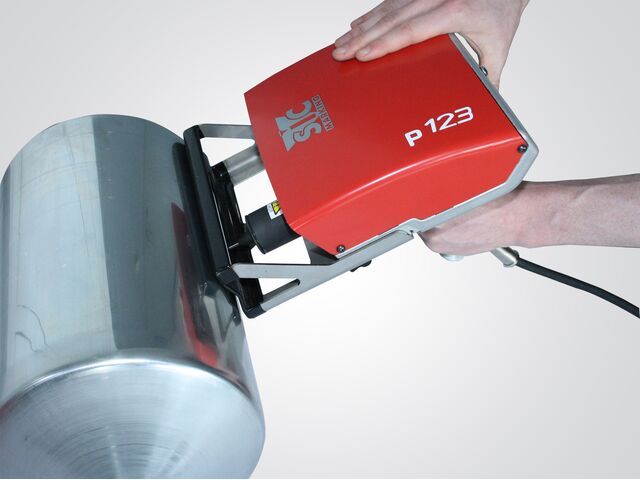

The P123 is a micro-percussion marking gun designed for demanding industrial applications. With large marking windows and the ability to mark very hard materials, it guarantees optimal traceability. This robust product is ideal for permanent marking of heavy and bulky parts.

1. Large marking window: The P123 offers a marking surface of 120 x 25 mm, expandable to 120 x 40 mm, allowing for the processing of large parts.

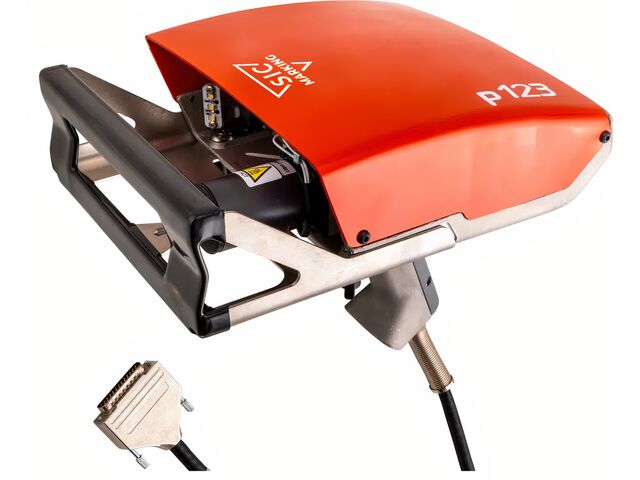

2. Robustness and durability: With its cast aluminum body and stainless steel front module, it is designed to withstand the most demanding industrial environments.

3. Precise and permanent marking: Equipped with a tungsten carbide stylus, the P123 produces durable markings such as text, logos, and Datamatrix codes.

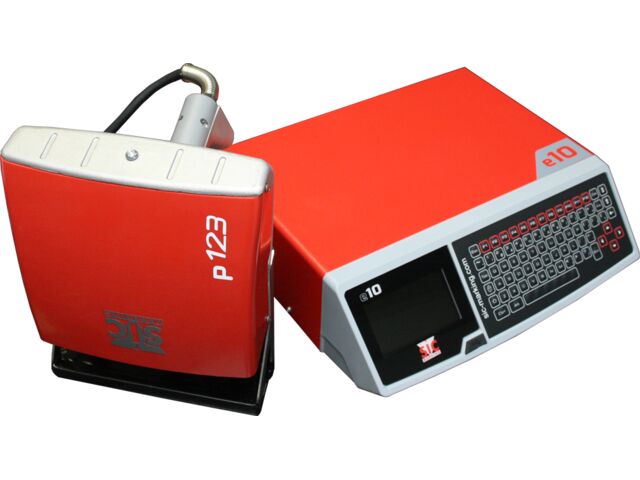

4. Advanced programming: The E10 controller, with its color screen and programming options, offers a simple and effective user interface to optimize marking processes.

The P123 is the ultimate marking solution for ensuring the traceability of industrial parts. Its robustness and deep marking capabilities make it an indispensable tool for companies wishing to protect their products against wear and external impacts. With its exceptional performance and ease of use, this gun is a sound investment for anyone looking to improve the quality of their industrial marking.

Our recommendations for use:

To use the P123 effectively, be sure to set the marking parameters correctly via the E10 controller. Always use the carbide stylus to ensure clear and durable markings, even on the hardest surfaces. Take into account the specific characteristics of the material to be marked in order to optimize the power and depth of the marking.

Available options:

- A column base, allowing a portable marking system to be adapted into a marking station.
- A cart, allowing a portable marking unit to be transported.
- A magnetic clamp, allowing the marking gun to be held onto steel parts.

Technical features

Marking window : 120 x 25 mm (option 120 x 40 mm) Dimensions : 277 x 207 x 218 mm Weight : 4,1 kg Connection cable : 7,5m to 15m on option Stylus : Carbide 60 mm Power of the controller : 300W Memory : 7110 KB Power supply : Single phase, 85 to 260 V AC, 50-60Hz

Download the complete technical features
