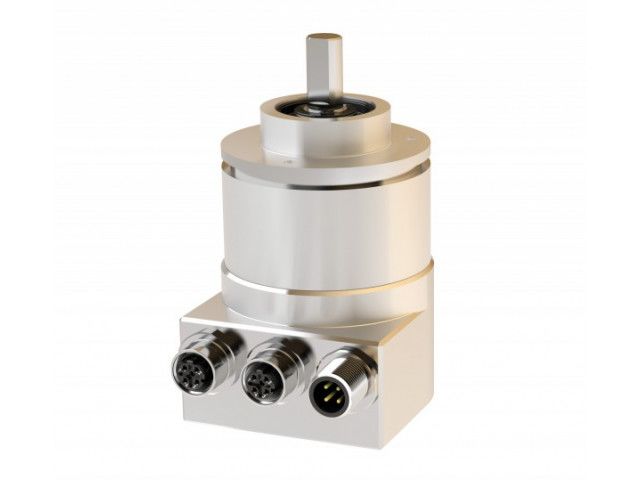

Rotary encoder TRT TWK-ELEKTRONIK GmbH

Rotary encoder TRT

Absolute encoders

Vote

Ask for a quote Receive Documentation Contact the supplier

Recording of the angular position and revolutions by means of Hall sensors - multiturn version with absolute multiturn transmission for up to 4096 revolutions - data output plus parameterisation and diagnosis via PROFINET. Robust housing manufactured from seawater-resistant aluminium or stainless steel - stainless steel shaft - ball bearing with radial shaft seal-sensor circuit consisting of ASIC with Hall elements - electrical connection via M12 connector or cable outlet. The Profinet interface according to IEC 61158 / 61784 or PNO specifications order No. 2.712 and 2.722, version 2.2, is integrated into the model series TRT absolute encoders. Real time classes 1 - 3 are supported, i.e. Real Time (RT) and Isochronous Real Time (IRT) plus the requirements of conformance class C. Setting the address, baud rate or terminating resistances is not necessary. A name, which is stored in the absolute encoder's non-volatile memory, is assigned via the PROFINET controller to address the device.

Inkremental or absolute: Absolute Interface: PROFINET Single- or Multiturn: Multiturn, Singleturn Design: 58mm, 64mm, 65mm, 66mm, 90mm, 105mm, 125mm Housing material: Aluminium, Stainless steel 1.4305, Stainless steel 1.4404 Resolution: 4096 steps/360°<), 8194 steps/360°<) Measuring range: 4096 revolutions, Revolutions length in meter for draw wire version Profile: Standard, PROFINET
Download the complete technical features
