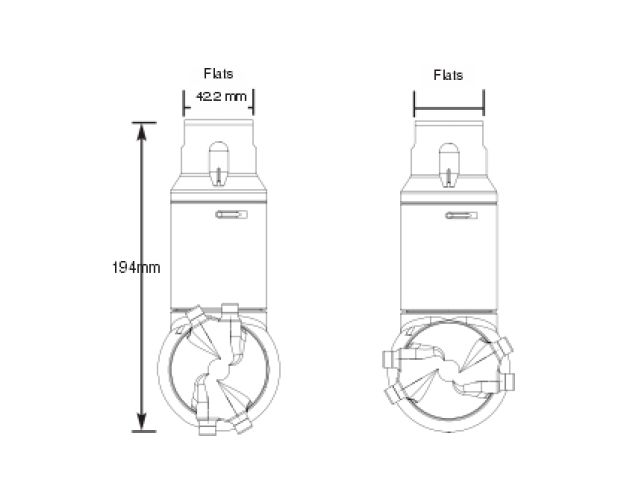

The Orbitor Compact is a powerful impingement cleaning head. It is geared to rotate fairly slowly to deliver the optimum jet dwell time on the tank wall so as to ensure the maximum cleaning power. Despite its incredible cleaning power the compact design means that the Orbitor 100 can easily fit into a 100mm opening and, with the arms vertically aligned, will squeeze through an 85mm opening. The Orbitor Compact is typically used in food processing, beverage, pharmaceutical and chemical tank cleaning applications. The compact design means it is suitable for deployment even in relatively small tanks. This means that the power of impingement cleaning can now be delivered to small batch tanks.
Spray characteristics: Flow rates: 48.3 - 198 l/min Working Pressure: 4 - 12 bar Jet length: Up to 8.6 metres Wash pattern: 360° Cycle times: 9.5 - 22 minutes Materials: Housing: 316L Nozzle Head: 316L Gears: PEEK + 316 SS Bushings: Carbon Filled PTFE Weight: 2.5Kg
