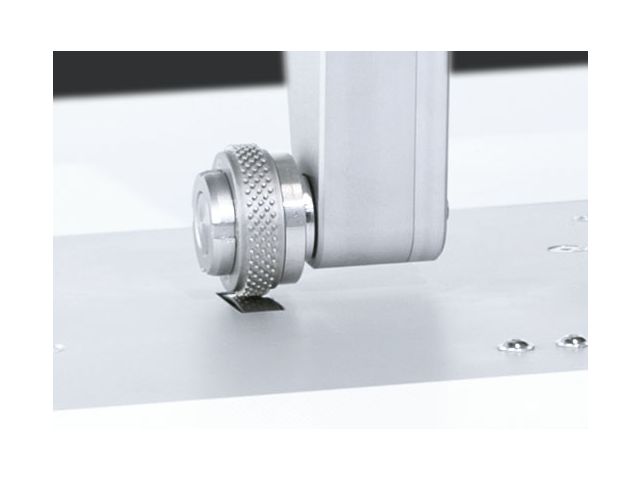

Ultrasonic welding machine | ROTOSONIC DX1 PORTAL

Ultrasound welding machine

Vote

Ask for a quote

Presentation

All NUCLEUS Rotosonic machines are also available as portal type. Due to its torsion-proof steel construction, even highest welding pressures can be reached.

Portal machines with a wide throughput (1,5 m to 6 m) facilitate the handing when welding wide, heavy material webs. The width and number of the ultrasonic welding heads are freely configurable and optionally motor driven.

Portal widths of 1,5m to 6m (other sizes on request)
Optional number of welding heads per portal
Mechanical or motor-driven positioning of the welding heads possible
Optional customized table

Technical features

Ultrasonic frequency : 35kHz Ultrasonic generator : NUCLEUS Digital Generator DG1 1000W Sonotrade TC12: 12mm wide cutting sonotrode Contact pressure : Digital NUCLEUS press unit with 600 N contact force (without air pressure) Speed : max. 24,3 m/min Number of drives : 2 Welding width : max. 12 mm Handling of the machine : 11“ Multi-Touch-Display Power supply : 230 V, 50 Hz reversible to 110 V, 60 Hz Welding heads / Tables (individually made for your application) : on request
