“ Large workspace
Choice of manual/motorized axes
Can be integrated into robotic cells ”
Ask for a quoteReceive DocumentationContact the supplier

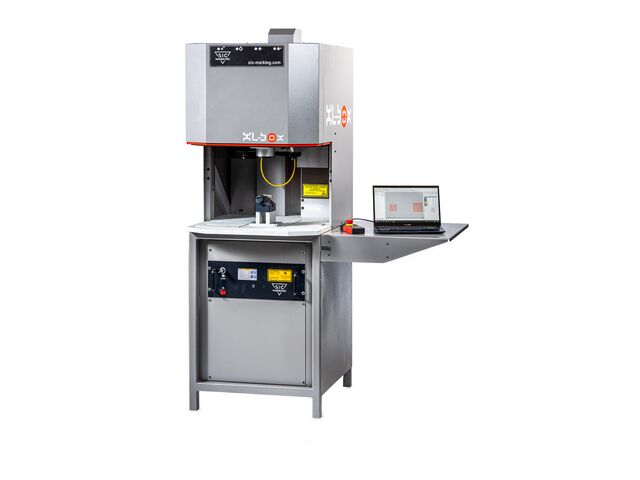

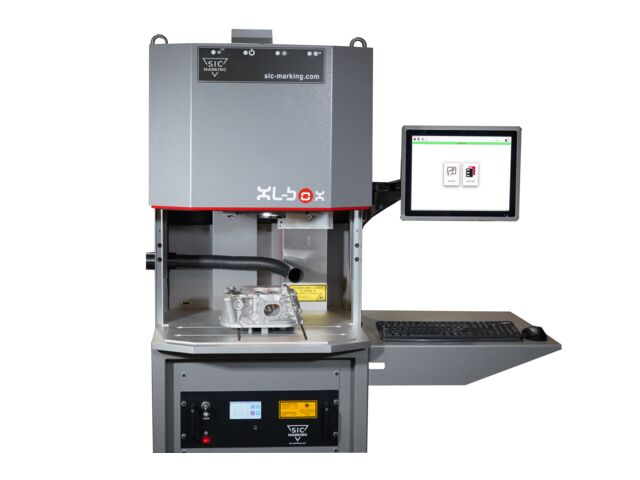

The XL-BOX laser marking station from SIC Marking is a highly versatile industrial engraving tool. Equipped with an ytterbium-doped fiber laser, it guarantees clear and precise markings in a short time. This machine is specially designed for versatile applications, ranging from stand-alone marking to integration into robotic cells.
1. Versatile use: Whether for alphanumeric markings, barcodes, or 2D Datamatrix codes, the XL-BOX can be adapted to various materials such as steel, aluminum, titanium, and even plastics, without altering the treated surface.
2. Production efficiency: Its ability to withstand high speeds makes it ideal for small, medium, and large production runs, offering operators flexibility and productivity.

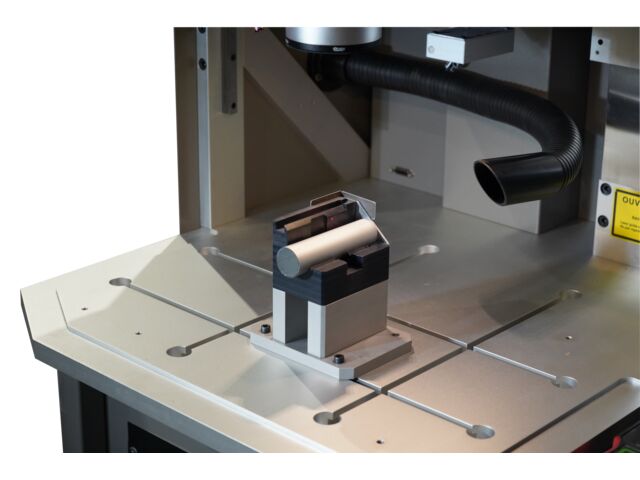

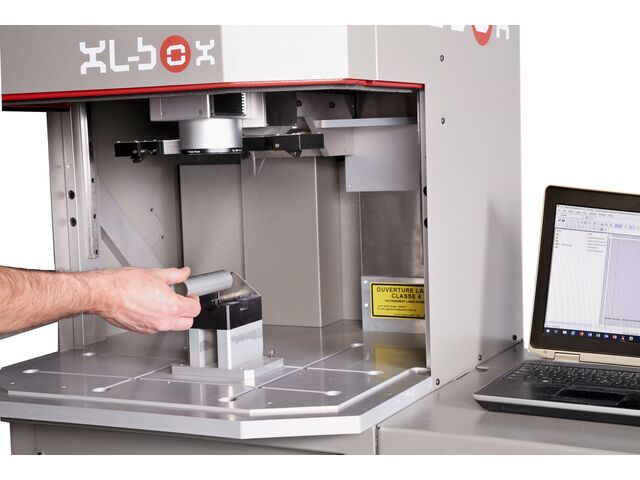

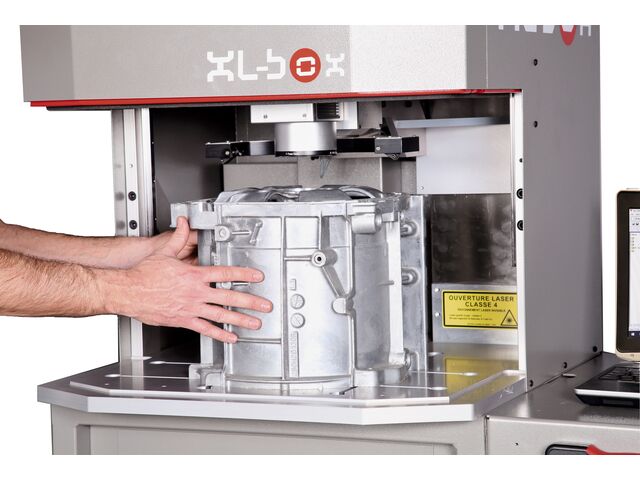

3. Large working area: With a spacious 22.7 x 22.3 inch working area accessible from three sides, handling and positioning parts is quick and easy.
4. Safety and compliance: Designed with a Class 1 safety enclosure in accordance with EN 60825-1, it ensures safe use for operators and the industrial environment.
The XL-BOX laser marking station from SIC Marking is a strategic choice for companies seeking efficiency and flexibility in their industrial marking operations. Its advanced technology and ergonomic design make it an essential tool for optimizing your operations. Don't wait any longer to add this solution to your business—request a quote now.
Our recommendations for use:
To use the XL-BOX effectively, install it in a space that allows for easy handling of materials. Consider adjusting additional options, such as 3D marking or additional axes, according to your specific needs. Ensure that the machine is configured in accordance with safety standards to guarantee optimal and safe operation.
Three options are available (upon request):
- Rotating D-axis
- Integrated reading function
- SIC FACTORY AUTOMATION (SFA) software
Marking window : 60 x 60 mm to 300 x 300 mmOverall dimensions (l x d x h) : 655 x 755 x 995 mmWork zone : 570 x 564 mmSecurity : Class 1 safe closing of enclosure (standard En 60825-1)Source : SIC Marking ytterbium-enhanced fibre laserOptical fibre length : 3 metersMean power : 20W, available in 30WCooling : Air cooled onlyMaximum dimensions of parts marked : L : 370 mm ; H : 570 mm3 options available (see description)
