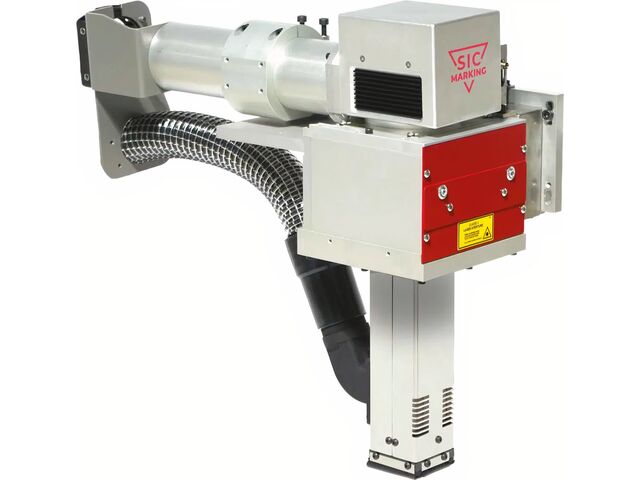

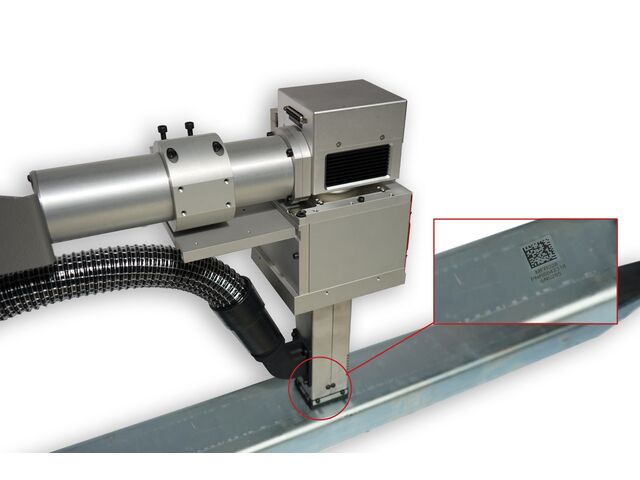

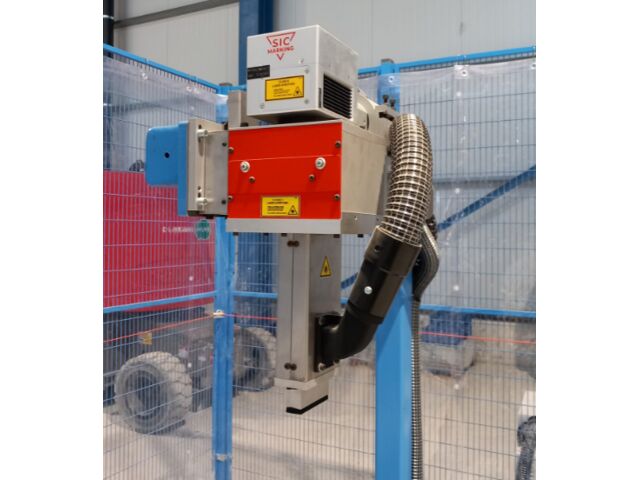

The FIT LASER is an integrable laser marking system designed to optimize your production lines safely and efficiently. Thanks to its all-in-one configuration, it offers Class 1 integration, ensuring the protection of nearby operators. Suitable for automated environments, it is compatible with several advanced communication protocols.
1. Optimal safety: The FIT LASER is preconfigured for Class 1 integration with a radiation-proof sleeve, ensuring the protection of nearby personnel during marking.
2. Power versatility: With laser powers ranging from 20W to 60W, it offers flexibility tailored to the specific needs of your industrial applications.
3. Enhanced compatibility: The modular FU4 controller easily connects to your automated line thanks to its compatibility with various protocols such as OPC UA, Profinet, Ethernet-IP, and Profibus.
4. Simplified maintenance: The FIT LASER features optimized airflow and a protective glass cover on the drawer, facilitating maintenance and reducing downtime.
FIT LASER is therefore the ideal marking solution for production lines that require safety, precision, and flexibility. Thanks to its numerous integration options and ease of maintenance, you can improve the quality of your marking while minimizing interruptions.
Our recommendations for use:
To use the FIT LASER effectively, ensure that its integration into the production line complies with Class 1 safety standards. Configure the communication protocols for a smooth connection with existing automation. Follow the maintenance recommendations to optimize the device's service life and ensure high-quality marking over the long term.
Available accessories:
- A flow meter
- An air-conditioned enclosure for the controller
- A Fieldbus, Profinet, Ethernet IP, or Profibus card
- A smoke extractor
- A code reader (integrated or external)
- Additional sensors
Marking window : 30 x 30 mm - 50 x 50 mm - 60 x 30 mm - 100 x 30 mmLaser power : 20W, 30W, 50W, 60WFIT weight : 13 kgLaser safety (EN 60825-1) : Ready for Class 1 integrationPerformance level of safety devices : PL-eCommunication protocols : Profinet, Ethernet IP, OPC UA, Profibus
