XXL-BOX modular laser marking workstation

Laser marking

Vote

“ MODULARITY Record dimensions with a choice of several widths (800, 1200 or 1600 mm) TAILOR-MADE DESIGN Choice from an unlimited number of custom options ROBOT AND COLLABORATIVE ROBOT MODE Laser fully controllable by the automation of a robotic cell YTTERBIUM-DOPED FIBER LASER Power from 20 to 50W, fast high contrast marking ”

Ask for a quote

Presentation

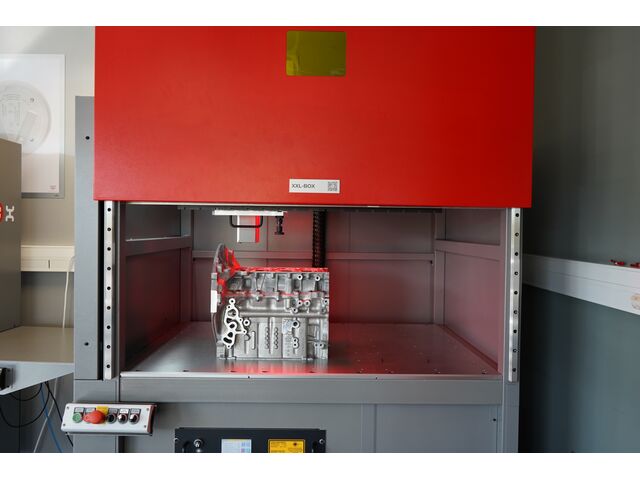

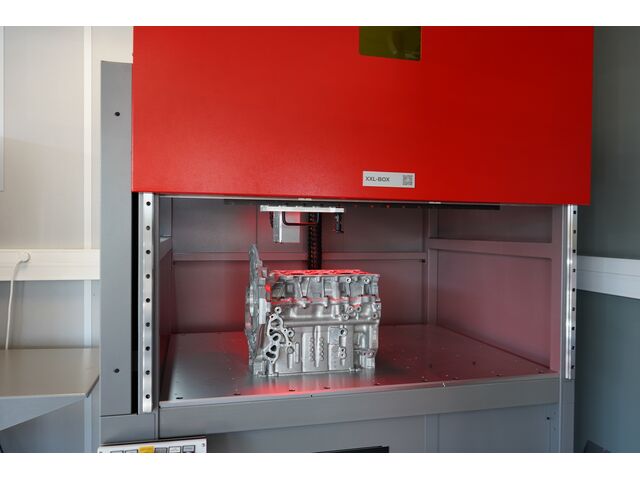

The XXL-Box allows the marking of large parts. With a 820 mm depth and the ability to mark 520 mm parts high, this marking station has the largest volume on the market.

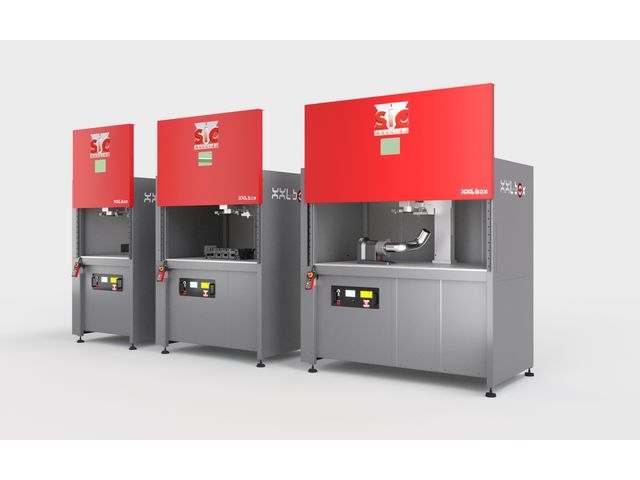

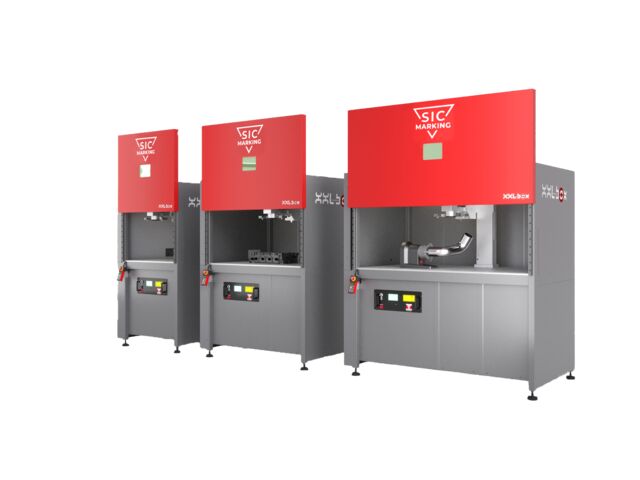

In order to meet different needs, the XXL-Box is available in 3 width (800, 1200 or 1600 mm) and can be equipped with an unlimited number of standard and customized options, making it a particularly modular machine :

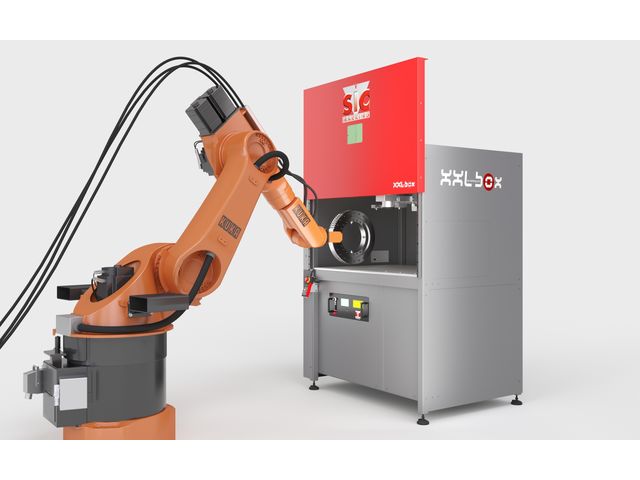

Control by the automation of a robotized cell
Manual or motorized horizontal movement of the column
Divider axis
Drawer for heavy parts
Suction and filtration system
3D marking or integrated reading system can be added at any time
Etc.

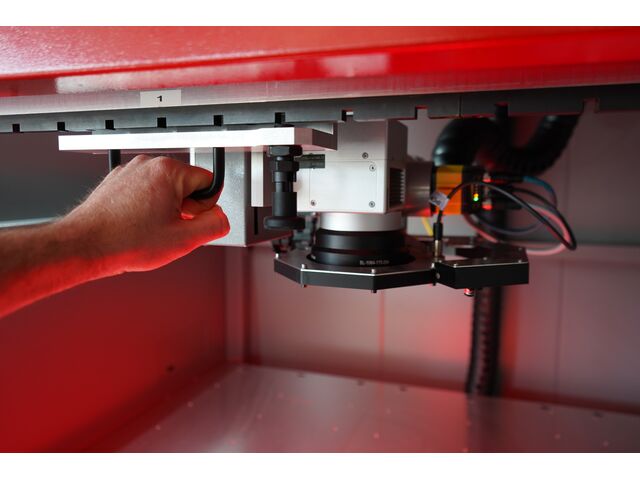

The XXL-Box is equipped with a Ytterbium-doped fiber laser source. This latest generation technology is extremely durable, easy to implement and requires no maintenance costs.

Capable of marking alphanumeric, barcode and 2D Datamatrix codes in clear or deep text, the SIC MARKING laser marks all metals and plastics. The result obtained is readable with the naked eye or by proofreading cameras in a few hundredths of a second.

Technical features

Marking window : 60 x 60*mm / 100 x 100 mm / 170 x 170 mm / 220 x 220*mm / 300 x 300*mm (*contact us) External dimensions : 1020* x 1040 x 1850 mm *Modular width: 1020, 1420 ou 1820 mm Work zone : 1337 x 800 mm Dimensions of the marked parts : Height max. 520 mm, Length max. 1337 mm Security : Secure closing of the class box 1 (standard EN 60825-1)

Download the complete technical features
