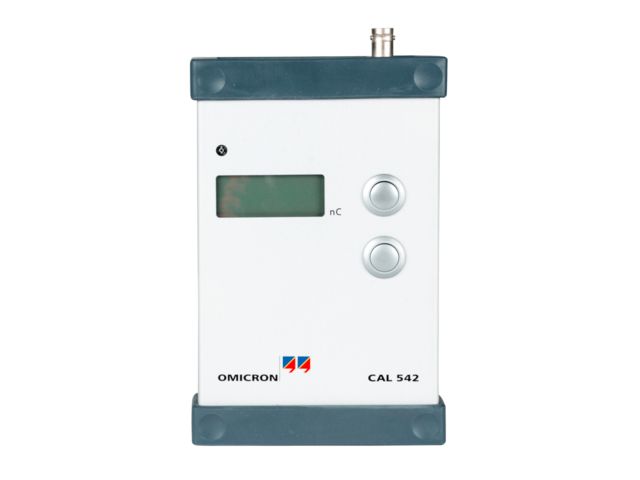

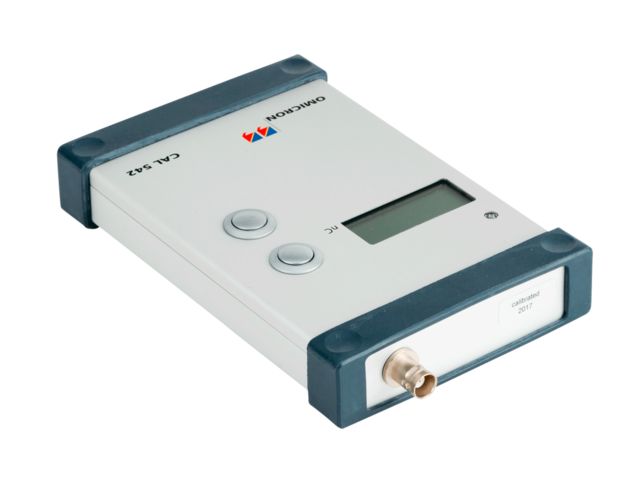

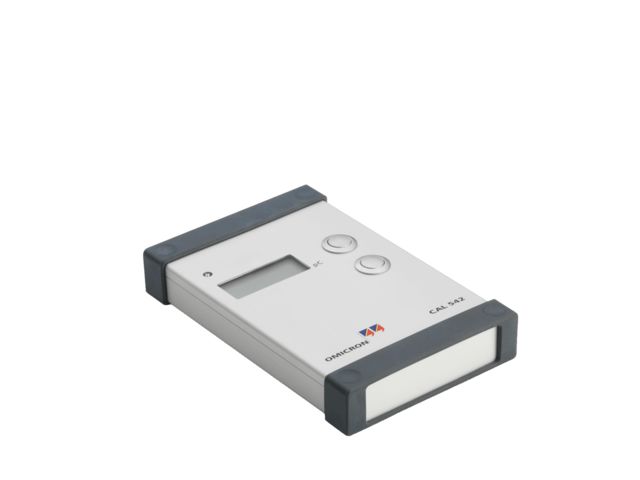

Charge calibrator | CAL 542

Calibration device

This product is temporarily unavailable.
Think about consulting similar products.

Make a request

Presentation

The IEC 60270 standard requires verifying the test setup prior to conducting partial discharge (PD) measurements. To achieve this, the CAL 542 charge calibrator feeds a defined charge pulse into the measuring circuit. The PD measurement system is then calibrated to this value.

The charge value is shown on the display and can be easily adjusted. A built-in light sensor allows synchronization of pulses with the mains frequency.

Lightweight and easy to use
Intuitive setup of amplitudes
IEC 60270 standard compliant
Independent power supply with built-in battery

Technical features

Download the complete technical features

Usage scope

Calibration of test setups to ensure IEC 60270-compliant PD measurements on a variety of electrical assets
