Infrared camera for hydrogen flame detection INNOVIDEA

Infrared camera for hydrogen flame detection

Thermal camera for fire fighting

Vote

“ - VGA resolution fixed camera with OnVif and PAL/NTSC standard - Detection and image of hydrogen, methanol and Jet A fuel flames - Detection of up to 5 fires in the field of view and range up to 2km (1m² fire with 135mm) - 3 types of alarms; superimposed visual alarms, dry contacts, Modbus to DCS via the video management system - Version in ATEX enclosures available - Power supply possible via solar panels ”
Ask for a quote Receive Documentation Contact the supplier

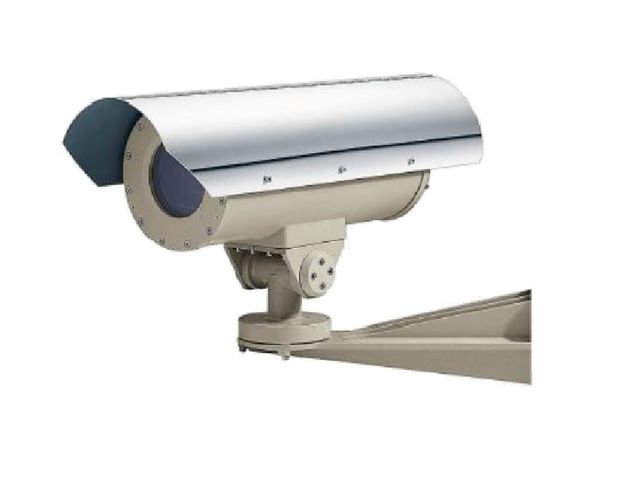

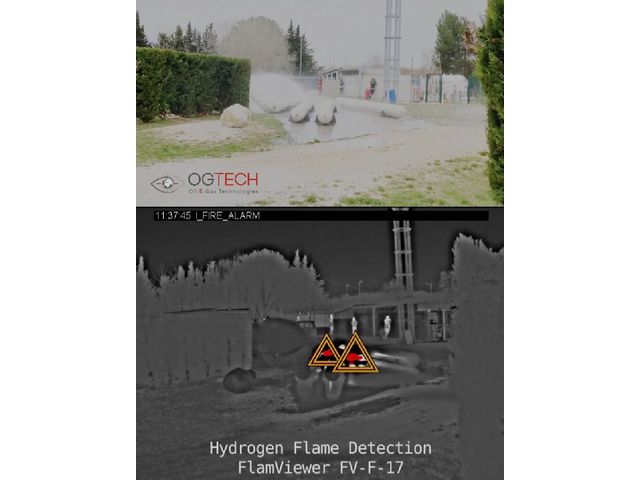

The FlamViewer FV-F-17 from Oil & Gas Technologies proposed by INNOVIDEA allows the detection and visualization of all types of flames including hydrogen or methanol invisible to the naked eye. It includes an infrared thermal camera (7.5 to 12µm) with a resolution of 640x480 pixels in Onvif digital and analog (PAL/NTSC) output format and an embedded software.

The FV-F-17 can detect, day and night, even without smoke, up to 5 fires simultaneously. It avoids false alarms and also allows to detect fires before they occur thanks to its algorithms (taking into account random movements of flames, thresholding and abnormal temperature increase).

The following functional characteristics offer great flexibility of integration and use to security managers of sensitive sites;
- 3 types of alarms can be generated; visual alarms superimposed on the screen, dry contacts, Modbus to DCS from the video management software
- Optional services: SMS or email, video streaming (internet/intranet), wireless data/video transmission
- Power supply via solar panels

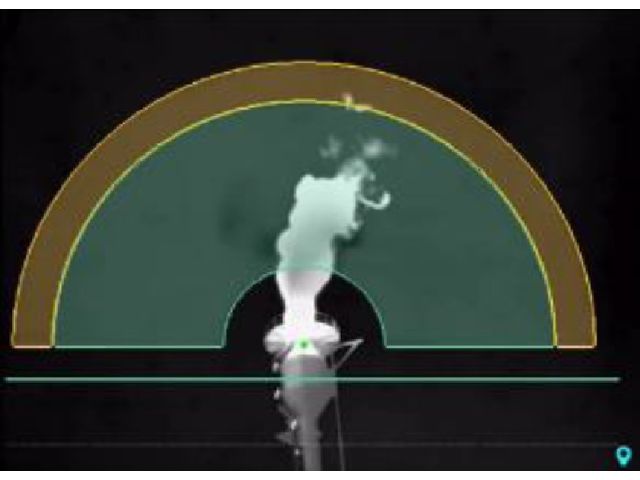

Available in different optics (8.5, 14, 19, 25, 35, 60, 135mm) and housing versions (standard, ATEX class 1 or 2), the FV-F-17 can detect a 1m² fire up to 2km away or manage a flare. This system is designed for the petrochemical and gas industries, for the hydrogen industry, for the fire department or fire school.

Fixed camera for site surveillance 24/24 VGA resolution (640x480 17µm) of NETD 35mK IP and analog output (PAL/NTSC) - H.264 video 3 types of alarms; visual alarm overlay, dry contacts, Modbus to DCS via video management system Different lens versions (8.5, 14, 19, 25, 35, 60, 135mm) Dimensions: 493mm (L) x 175mm (W) x 168mm (H) Operating temperature: -40°C to +60°C Available versions in different housings (standard, ATEX class 1 or 2) Options: wireless transmission or SMS or email generation CE and FCC certifications
Download the complete technical features

Hydrogen industries Aeronautics industry Oil and gas infrastructures Fire department

Drop your rating on Infrared camera for hydrogen flame detection

Your answer to the rating from -

22/08/2022

please could you send the technical documentation & budget price concerning the infrared camera for hydrogen flame detector .
