Presentation

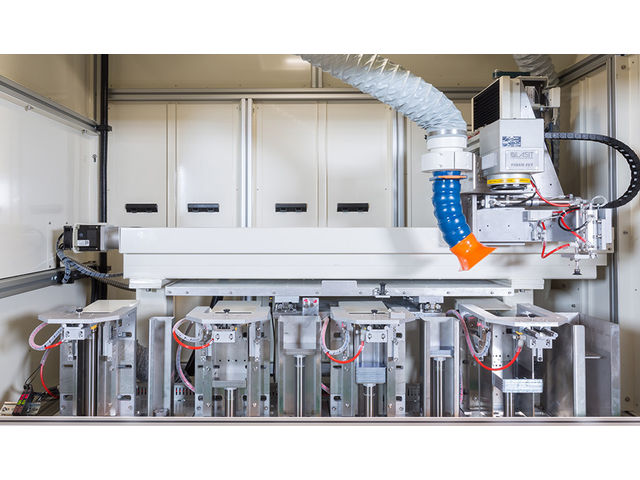

FlyLabel 4 is a laser marking system designed to automatically mark different size plates, labels, or tags. The standard version offers 4 loaders each of which can hold up to a thickness of .5mm. The process is automated as the laser runs along the X axis.

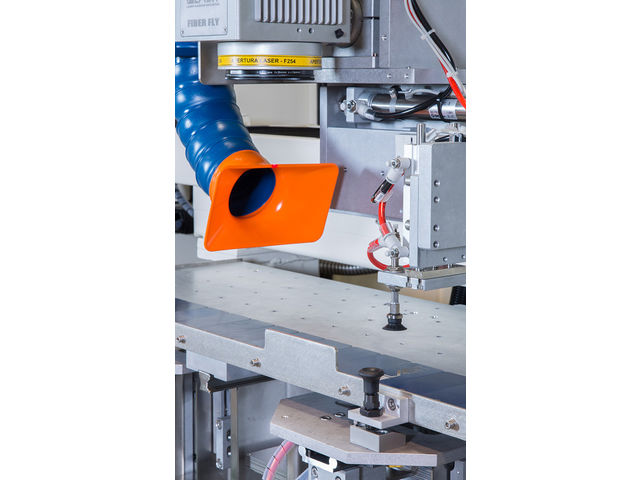

The X axis is motorized and has a stroke of 800mm. Upon marking one tag, the laser automatically moves to the next position to mark the next tag. This system is also available as a pick & place system in which the labels, tags, and plates are selected one by one as they are released from a magazine and placed in the marking area. The laser marks the item and automatically releases it into one of 10 collection trays.

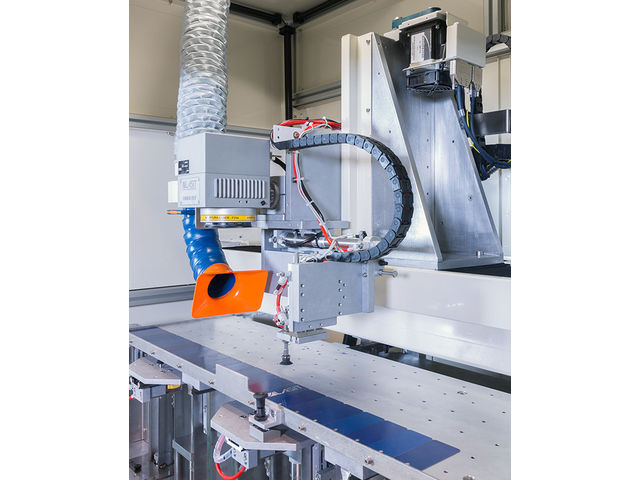

There is a system for managing the data needed to carry out marking and it can be tailored to specific needs for each application. Data can come from a database, an Excel spreadsheet, or a simple text file that has been properly formatted. The FlyLabel 4 system is also equipped with a motorized Z axis. With this additional axis, the machine can also be used as a traditional marking system to engrave individual details or pallets.

Technical features

Working position: Stand up Working position: Stand up Markable max height (ø 140mm): 200mm Available marking areas: ø220 Options which can be installed: Removable plane Type of engine: Up to 6 motors with encoder Joystick: Optional Type of door: Pneumatic Exhaust fan and filter: Integrated into the base Pc and monitor: Integrated into the base and monitor holder
