TWK-ELEKTRONIK GmbH

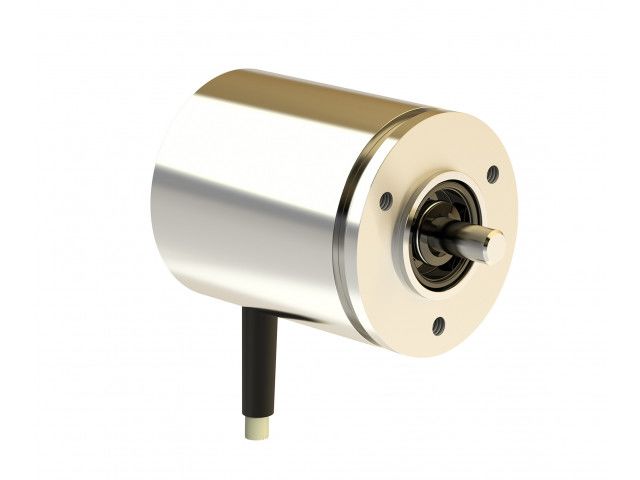

Rotary encoder TRE42 TWK-ELEKTRONIK GmbH

Rotary encoder TRE42

Absolute encoders

Vote

Ask for a quote Receive Documentation Contact the supplier

Robust case with wall thickness of 5 mm either in seawater resistant aluminum or in stainless steel - shaft in stainless steel - rotating components with permanent magnet in front chamber - electronic circuit with ASiC and Hall elements and interface components fitted within main chamber, separated from rotating components by a metallic wall - integrated absolute multiturn gearbox for the acquisition of revolutions - optional potting against water jets (IP 69K) - electrical connections via round plug M12x1 or lead exit.

Inkremental or absolute: Absolute Interface: SSI Single- or Multiturn: Multiturn Design: 42mm Housing material: Aluminium, Stainless steel Flange and shaft: Synchroniser flange Resolution: 4096 steps/360°<) Code type: Binary, Gray (optional) Measuring range: 4096 revolutions Electrical connection: Cable 1m
Download the complete technical features
