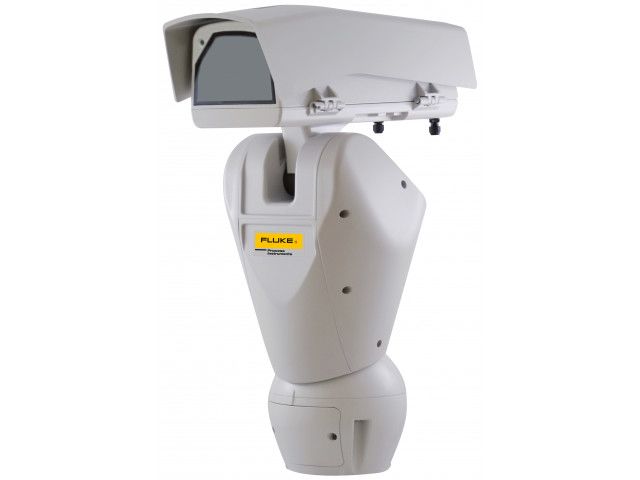

ThermoView TV40 Thermal Imager

Thermal infrared cameras

Vote

Ask for a quote

Presentation

ThermoView TV40 is a high-performance industrial thermal imaging system for fixed installation designed for factory automation applications. It integrates a visible-light camera and software for temperature control, monitoring, and data archiving.

• Wide temperature range: -10 to 1200 °C (14 to 2192 °F)
• Rugged aluminum housing, IP67 (NEMA 4)
• Ambient temperatures to 200 °C (392 °F) with high-temperature enclosure
• Air purge and accessories available
• IR-Fusion technology: simultaneous thermal and visible sighting
• Remote motorized focus
• 320 x 240 and 640 x 480 focal plane array
• 9 or 60 Hz models available
• GigE Vision interface
• LAN/Ethernet with PoE for communication with the camera provides access to Ethernet, Web server and ThermoView Software
• Multiple field interchangeable lens options
• 2-year warranty

Technical features

Measured temperature range: -10 to 1200 °C (14 to 2192 °F) Ambient temperatures: up to 200 °C (392 °F) with cooling enclosure Environmental protection: IP67 (NEMA 4) Spectral range: 8-14 μm Accuracy: ± 2 °C or ± 2% (reading) Frame rate: 9 or 60 frames/sec Power supply: DC 12 to 26V, Power over Ethernet (PoE) Resolution: 320 x 240px or 640 x 480px Field of view: Horizontal 34° x 25.5° Add-on lens options: 0.75 wide lens , 2x lens, 4x lens, macro lens

Download the complete technical features
