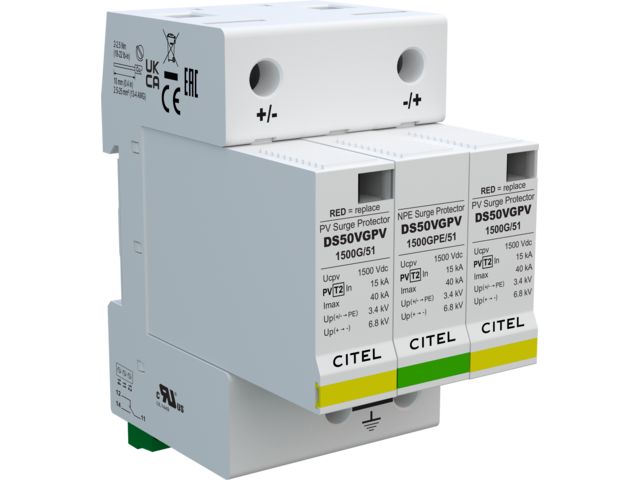

Type 2 Photovoltaic surge protector : DS50VGPV-G/51 series CITEL-2CP

Type 2 Photovoltaic surge protector : DS50VGPV-G/51 series

Lightning arresters

Vote

“ Type 2 surge protector for photovoltaic system - VG technology ”
Ask for a quote Receive Documentation Contact the supplier


DS50VGPVS-G/51 products are available for PV networks with voltages of 600 V, 1000 V and 1500 Vdc. They comply with the European standard EN50539-11. The products are designed to be mounted on a DIN rail. The plug-in protection module allows quick replacement in the event of a failure. The protective circuit with VG technology consists of a Y-diagram composed of Gas Discharge Tube and high-power varistors. The absence of leakage current prevents the surge protection from aging. The DS50VGPVS is available with a status indicator and remote signaling.

VG technology No leakage, no operating current Improved life expectancy In/Imax : 15 / 40 kA Common/Differential mode protection Remote signaling (option) EN 50539-11 compliance UL, VDE and OVE approved (DS50VGPV-1000G/51)

photovoltaic sytem photovoltaic

Drop your rating on Type 2 Photovoltaic surge protector : DS50VGPV-G/51 series

Your answer to the rating from -

OTHER PRODUCTS LIGHTNING ARRESTERS FROM CITEL-2CP

Type 2 AC surge protector : DAC50 series

Type 2 AC surge protector : DAC50 series

 Ask for a quote
DIN rail plug-in surge protector for dataline/telecom

DIN rail plug-in surge protector for dataline/telecom

 Ask for a quote
Type 1+2+3 AC surge protector : DAC1-13VG series

Type 1+2+3 AC surge protector : DAC1-13VG series

 Ask for a quote

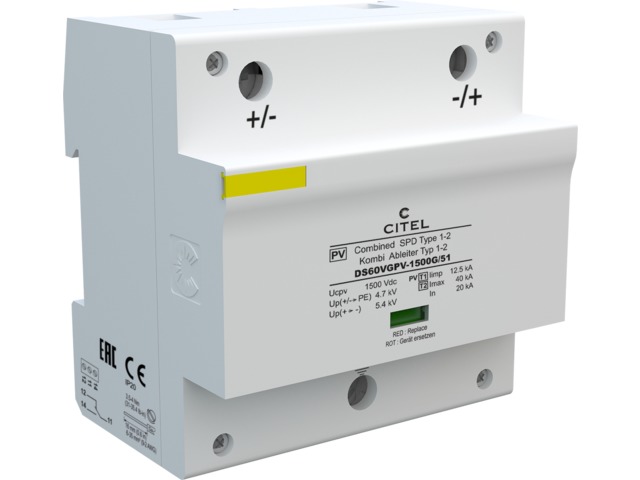

Type 1+2 Photovoltaic surge protector : DS60VGPV/51 series
