RG600F uncooled LWIR handheld gas detection camera (SF6, NH3)

Thermal infrared cameras

“ - Uncooled thermal gas detection camera in VGA format with ATEX certification - Gases detected (NH3, SF6, C2H4 or R1150, C3H6) band centered on 10.55µm - Image fusion visible (5Mpixels)/IR ”

Ask for a quote

Using an uncooled VOx LWIR microbolometer detector (narrow filter 10.55µm) with 640x512 pixel spatial resolution at 12µm pitch and high sensitivity (NETD 23mK), Raythink's RG600F camera enables non-contact visual leak location for dozens of gases such as ammonia, sulfur hexafluoride (SF6) and methane (CH4), ethylene (C2H4 or R1150), propylene (C3H6), ...

ATEX Class IIC T4 certified and compliant with CE and RoHS standards, its low weight of 670g and 3h battery life make it ideal for tracking gas leaks. These can be viewed in thermal or image fusion mode with the visible image from the 5Mpixel sensor on its 3.5" touchscreen, then saved on the native 32GB SD card or exported via USB or Wifi.

The RG600F is particularly well-suited to the following applications: emissions management and equipment maintenance in industry, gas safety and emergency response in fields such as

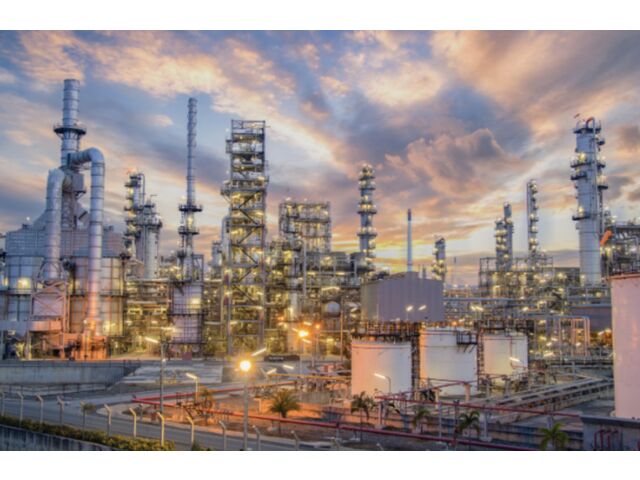

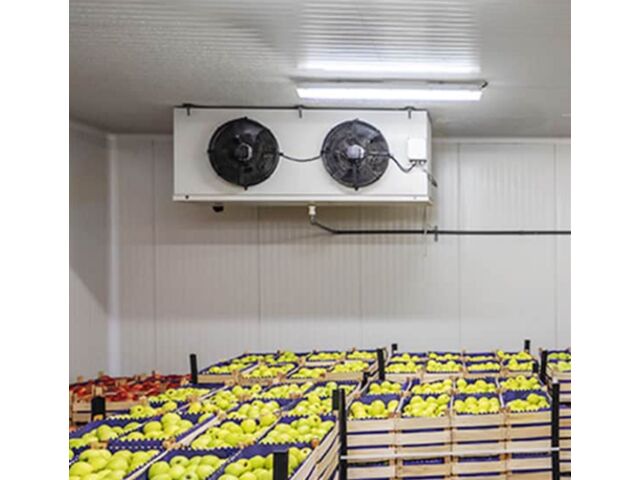

petrochemicals, fertilizer production, environmental protection, food processing industries (cold chain, freezing and deep-freezing).

Technical features

High thermal image resolution 640x512 pixels with 12µm pitch Sensitivity NETD 23mK Optics 19mm - field 23°x18° Camera certified ATEX class IIC , CE and RoHS Image/video storage on SD 32GB or export via Wifi or USB Dimensions: 56.4×105.1×105, 3mm - weight: 670g Gases detected : Sulfur hexafluoride (SF6), ammonia (NH3) , ethylene (C2H4 or R1150), vinyl ether, vylinyl chloride, trichlorethylene, methylvinylketone, propylene (C3H6), acrolein, acronitrile, ethyl cyanoacrylate, allyl fluoride, allyl chloride, allyl b Autonomy: 3 h - Power supply: rechargeable Li-Ion battery (USB-C)

Download the complete technical features
