Viento-10 640x512 10µm LWIR thermal camera

Viento-10 640x512 10µm LWIR thermal camera - INNOVIDEA

Viento-10 640x512 10µm LWIR thermal camera - Thermal infrared cameras

Viento-10 640x512 10µm LWIR thermal camera - produit présenté par INNOVIDEA

Viento-10 640x512 10µm LWIR thermal camera

Thermal infrared cameras

“ - Crisp thermal image in 640x512 pixels (VGA) with 10µm pitch - NETD ”

Ask for a quote

Presentation

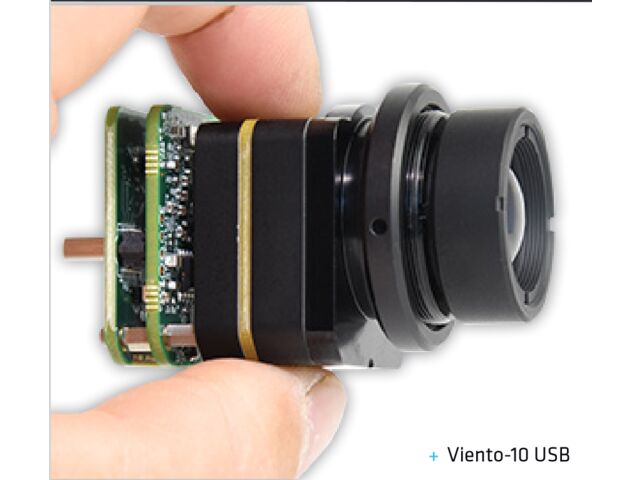

The Viento-10 is a compact, versatile thermal imaging camera designed for a wide range of applications, including thermal monitoring, quality control, predictive maintenance, scientific and research applications, security/surveillance, robotics and more.

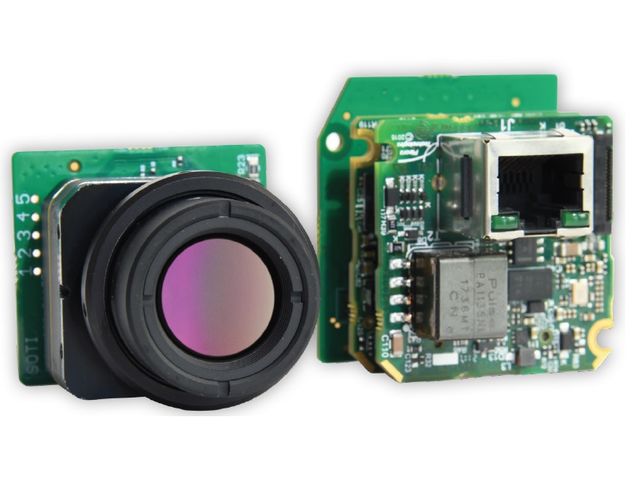

A VGA resolution LWIR camera, the Viento-10 can be connected to a wide range of other equipment via standard interfaces such as USB 3.0 or GigE Vision. It can therefore be easily integrated into existing systems.
Equipped with a VOx microbolometer sensor, with 640 x 512 resolution and 10 µm pitch, this camera provides a response in the 8 to 14 µm spectral band (uncooled LWIR).
The Viento-10 thermal camera is distinguished by :

    NETD below 30 mK with 3D noise filter,
    A frame rate of 60 Hz,
    Compact size and low weight.

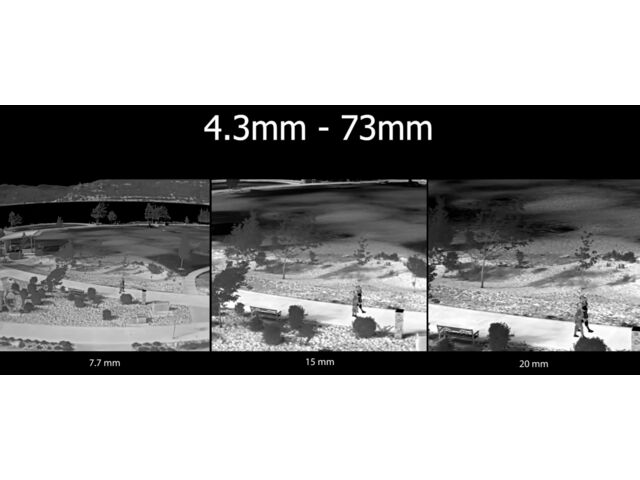

Several versions are available for digital output (GiGE.PoE or USB3.0 UVC) and optics (7.7, 15 and 20 mm). Its export classification is dual use (6A003b.4) for the 60 Hz version, or free export for the 9 Hz version.

Technical features

Microbolometer sensor VOx resolution 640x512 at 10µm pitch Spectral response band 8-14µm NETD: nominal 50mK f/1.0; 30mK with 3D noise filter Image frequency: 60Hz (9Hz export free version available) Digital outputs available: USB3.0 UVC or GiGE Power consumption: 2W in USB, 4.6W in GiGE Available optics: 7.7, 15 and 20mm (IP67) Possibility of external synchronization Operating temperature: -40 to +70°C Dual use export license (6A003b.4)

Download the complete technical features
