C-Blue One UV camera (200-400nm optimized) 8Mpixel INNOVIDEA

C-Blue One UV camera (200-400nm optimized) 8Mpixel

Thermal infrared cameras

Vote

“ - High resolution with 2856 x 2848 pixels (8.1MP) - High sensitivity in UV - QE between 30 and 50% between 200 and 400nm - High dynamic range 80dB - High data rate CoaxPress 2.0, 10GiGE (Genicam- GiGEVision) - SDK compatible C, C++, Python, LabVIEW, MatLab, µManager ”
Ask for a quote Receive Documentation Contact the supplier

The C-BLUE One UV camera is the latest addition to the C-BLUE One line of cameras from First Light Imaging.
It is a scientific camera based on a CMOS sensor of 2856 x 2848 pixels (8.1MP), with a 2.74µm pitch.
The camera operates in the visible and ultra-violet range from 200 nm to 1000 nm and has been optimized to have a high EQ in the 200-400nm band.
Its global shutter CMOS sensor allows to reach 170 frames per second in full resolution in 8bits and 61 frames per second in 12bits, and up to 1840 frames per second in cropping (1- lines, 8bits), with a read noise lower than 1.40 electrons, without image distortion.

C-BLUE One UV is equipped with a CoaxPress 2.0 output with 2 CXP-10x2 outputs, and delivered with its First LIght Vision software and its SDK compatible with Matlab, Labview, MicroManager, etc... A 10 GiGE version compatible with Genicam standard will be available soon.

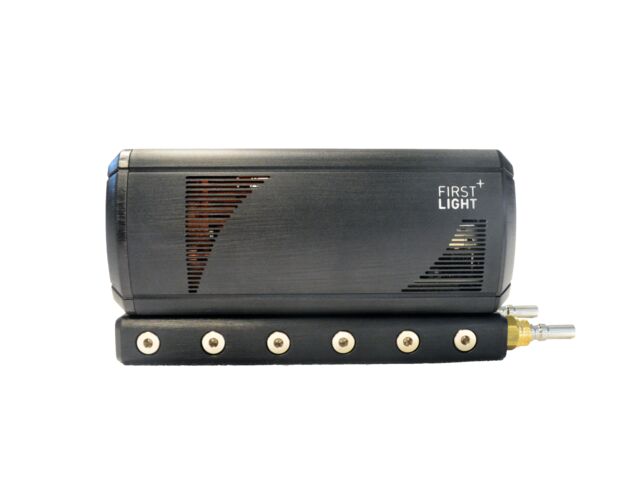

C-BLUE One UV is uncooled, but can be stabilized in temperature with an optional cooling plate.

C-BLUE One is thus a particularly interesting solution for demanding applications in terms of resolution, decadence and sensitivity, such as life sciences, astronomy, research (forensics) or industry (cosmetics, plasma, combustion)

Resolution: 2856 x 2848 pixels (8.1MP) CMOS global shutter Optimized spectral response in UV - EQ of 30 to 50% between 200 and 400nm Low read noise: 1. 4 electron RMS at 50µs integration time non-binned Quantization : 8bits, 12 bits and 16 bits in HDR Frame rate : 170fps (8bits) or 61 (12 bits) full frame Frame Rate (windowing ) : 516 fps (8bits) or 392 fps (12 bits) in 1428x1424 Standard Genicam & and GiGEvision C/CS mount with adapter
Download the complete technical features

Cosmetology Combustion & Plasma Life science (bacteriology) Gas detection and analysis (steel plants)
